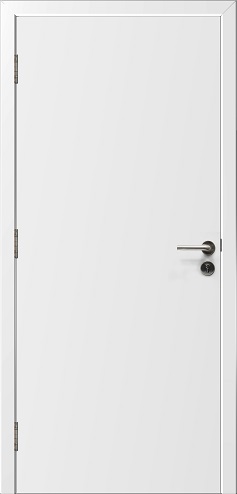

Fireproof

Specifications

Fire resistance - EI30 according to GOST R 53307-2009
Door leaf weight - about 20 kg/m2
Door leaf thickness - 42 mm

Maximum door assembly size (by frame)
single-leaf - 1400x600 mm
double-leaf - 1400х1200 mm

Maximum door assembly size (by frame)
single-leaf - 2400х1150 mm
double-leaf - 2400х2100 mm

Opening type - hinged door (right/left)

Standard set

Door leaf type -wooden (42х92 mm) around the perimeter, laminated with PVC film or RAL-painted according to the door leaf color

Leaf - LVL timber fastening, tubular chipboard Sauerland 33 RH, HDF sheet 3 mm, PVC sheet 1.5 mm

Sealers - cold smoke sealer and heat sealing tape 15х2 mm

Lock - fireproof Apecs1900-ZN with a striking plate

Hinges - Hafele 102x76 mm (stainless steel), 3 pcs.

STANDARD DOOR BLOCKS DIMENSIONS

Name

DPG KAPELLI 21x7

DPG KAPELLI 21x8

DPG KAPELLI 21x9

DPG KAPELLI 21x10

Door assembly + threshold size, mm

2065x665

2065x765

2066x866

2066x966

Door leaf size, mm

2000x600

2000х700

2000x800

2000x900

Glazing: DPO KAPELLI - partial glazing (not more than 25% of the door leaf area) in a metal frame (the minimum length of inside of the frame on either side is 300 mm), fire-resistant multi-layer glass FC-30 (12 mm).
